APOLLO COMMAND MODULE HATCH WINDOW - INNER STRUCTURE FRAME

APOLLO COMMAND MODULE HATCH WINDOW - INNER STRUCTURE FRAME

Regular price $290.00 USD
Regular price Sale price $290.00 USD
Sale Sold out
Material

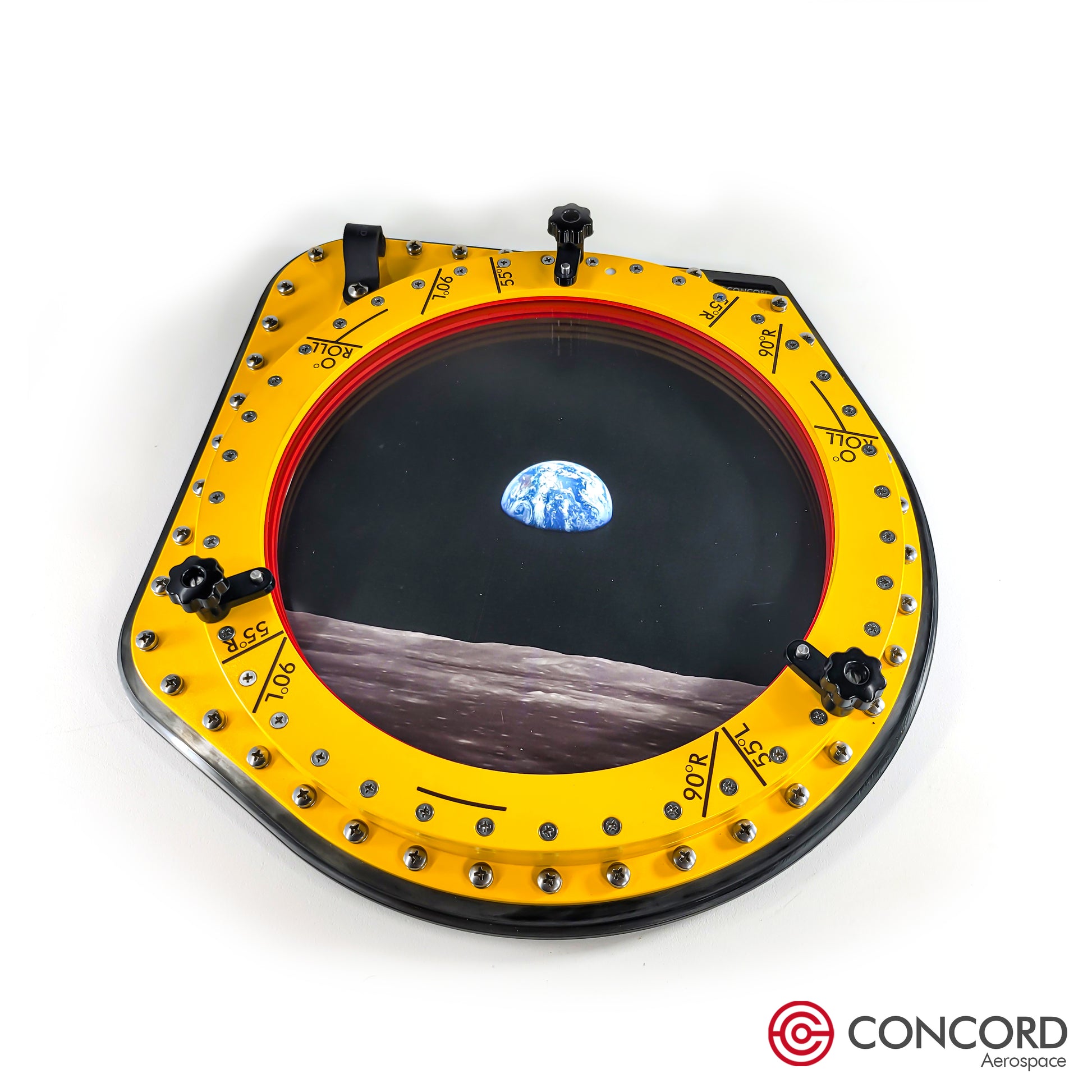

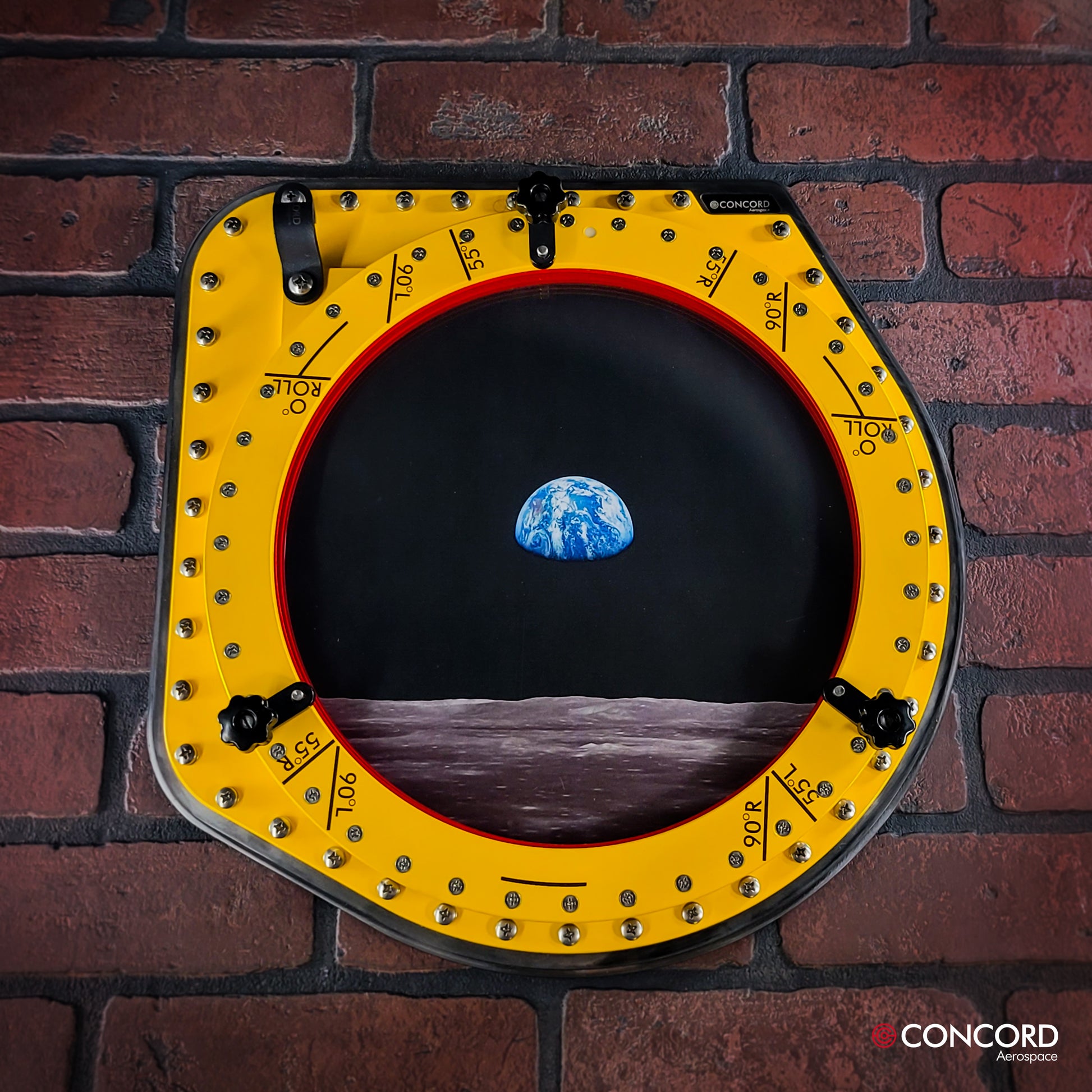

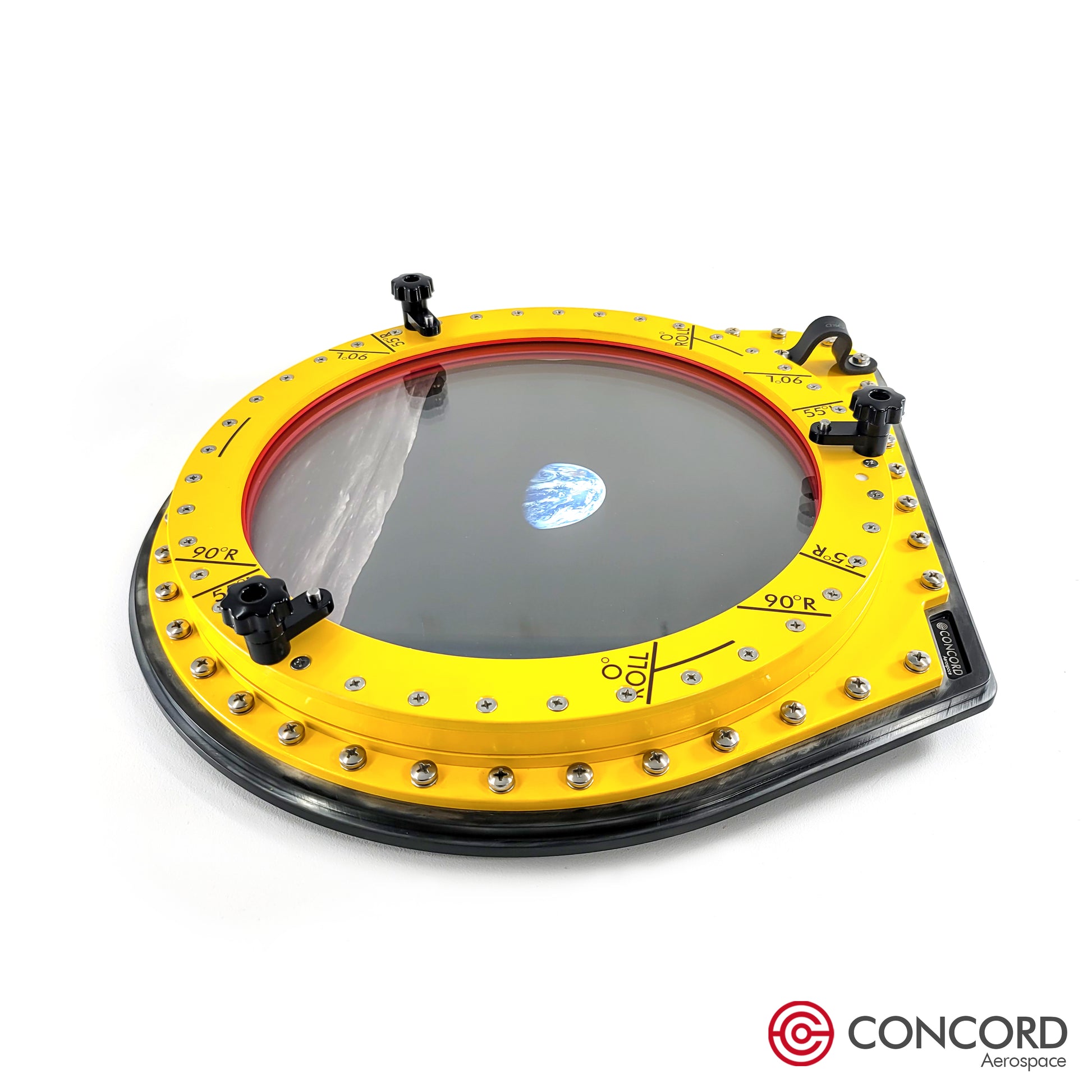

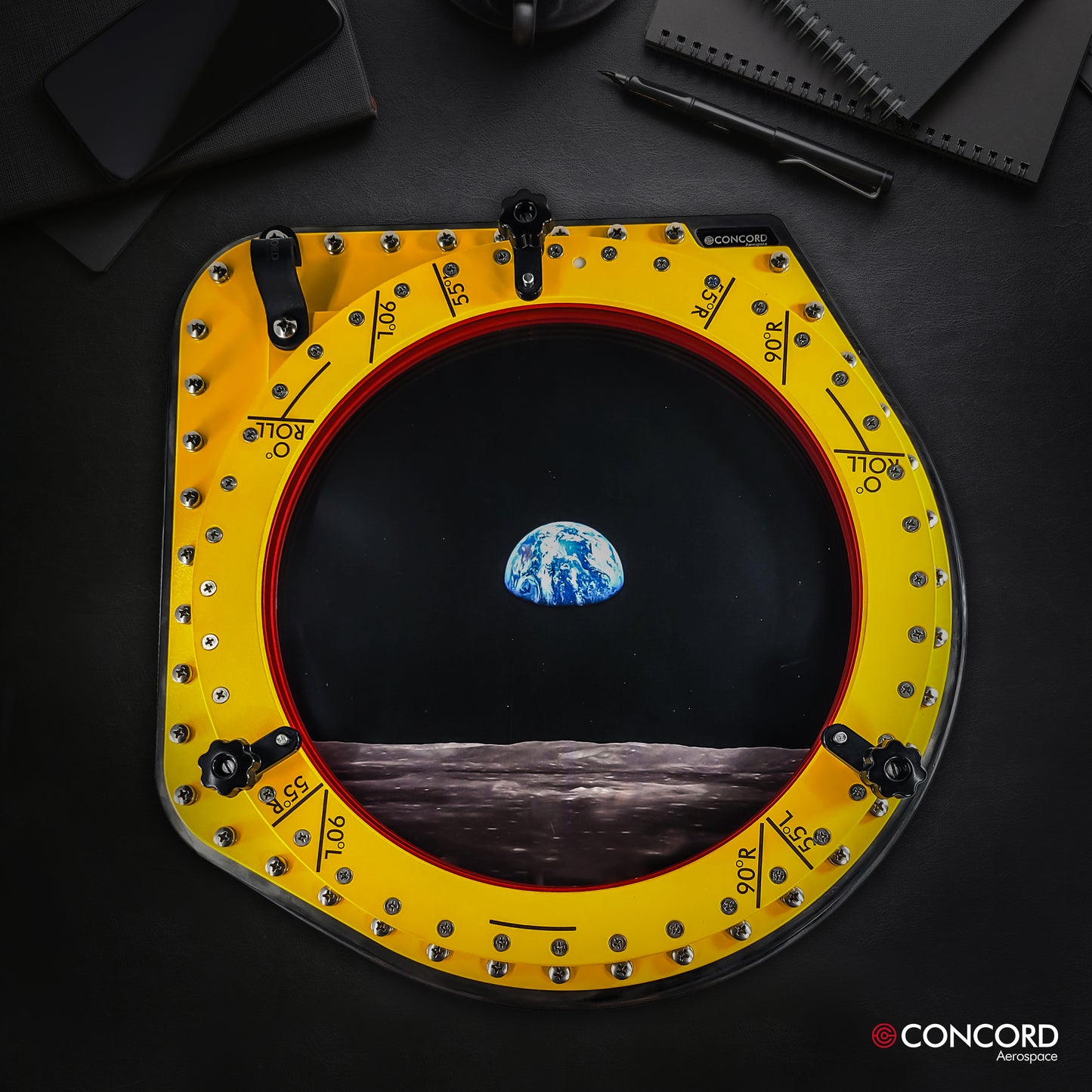

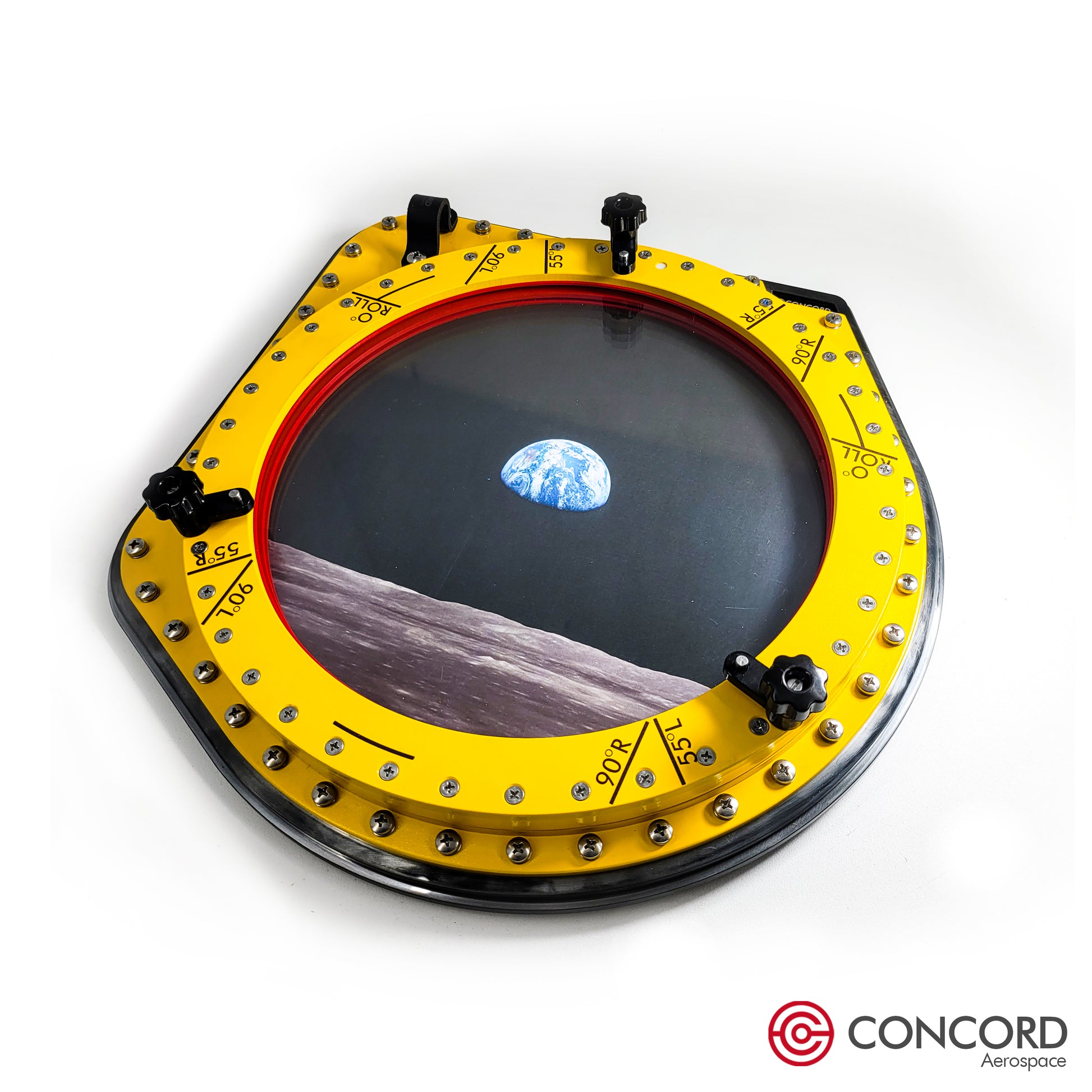

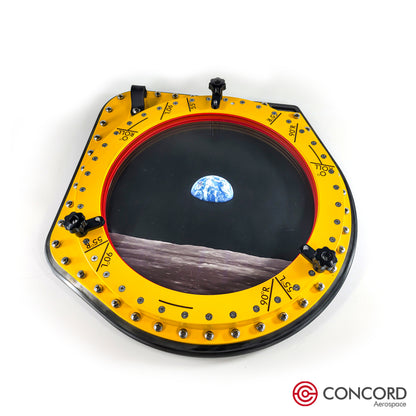

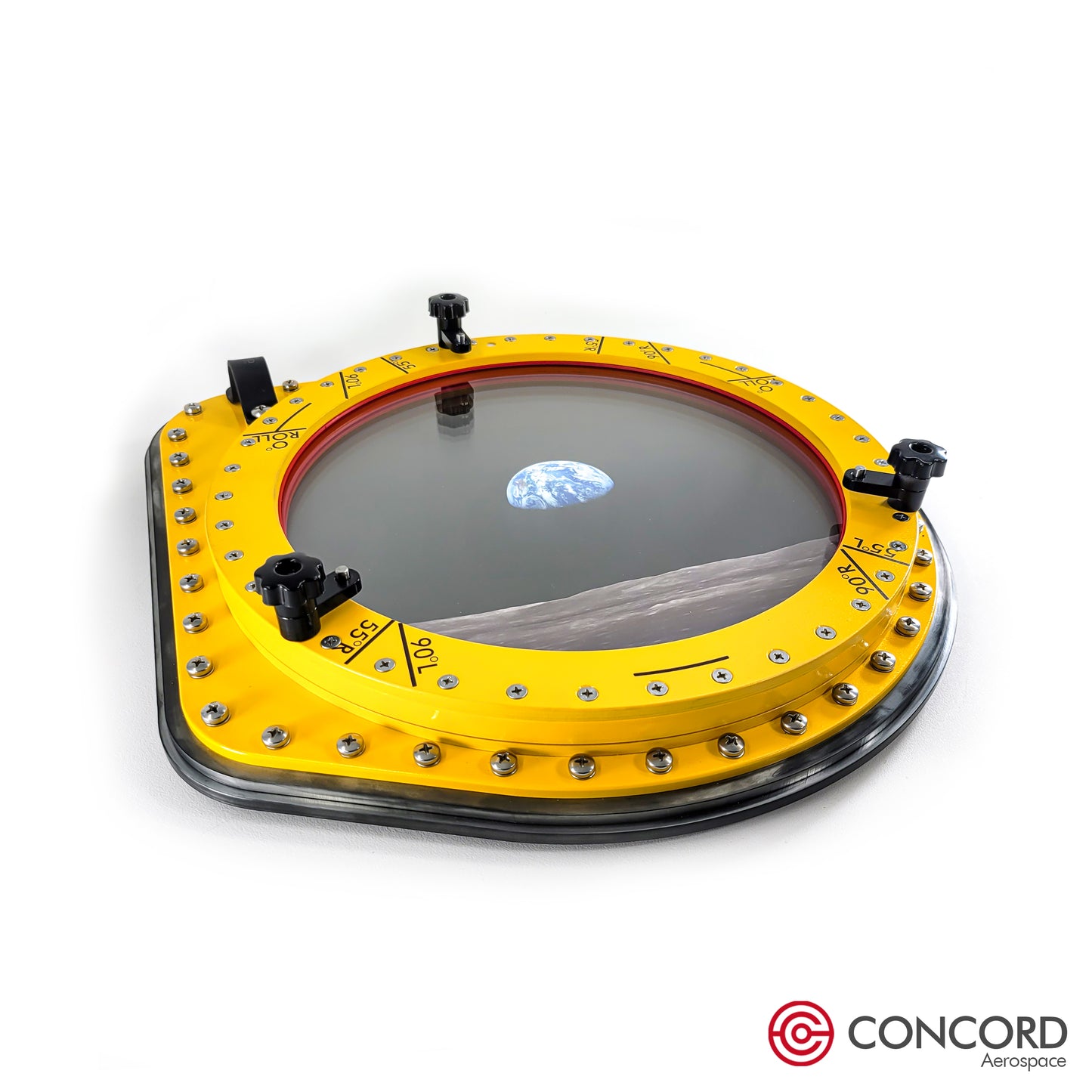

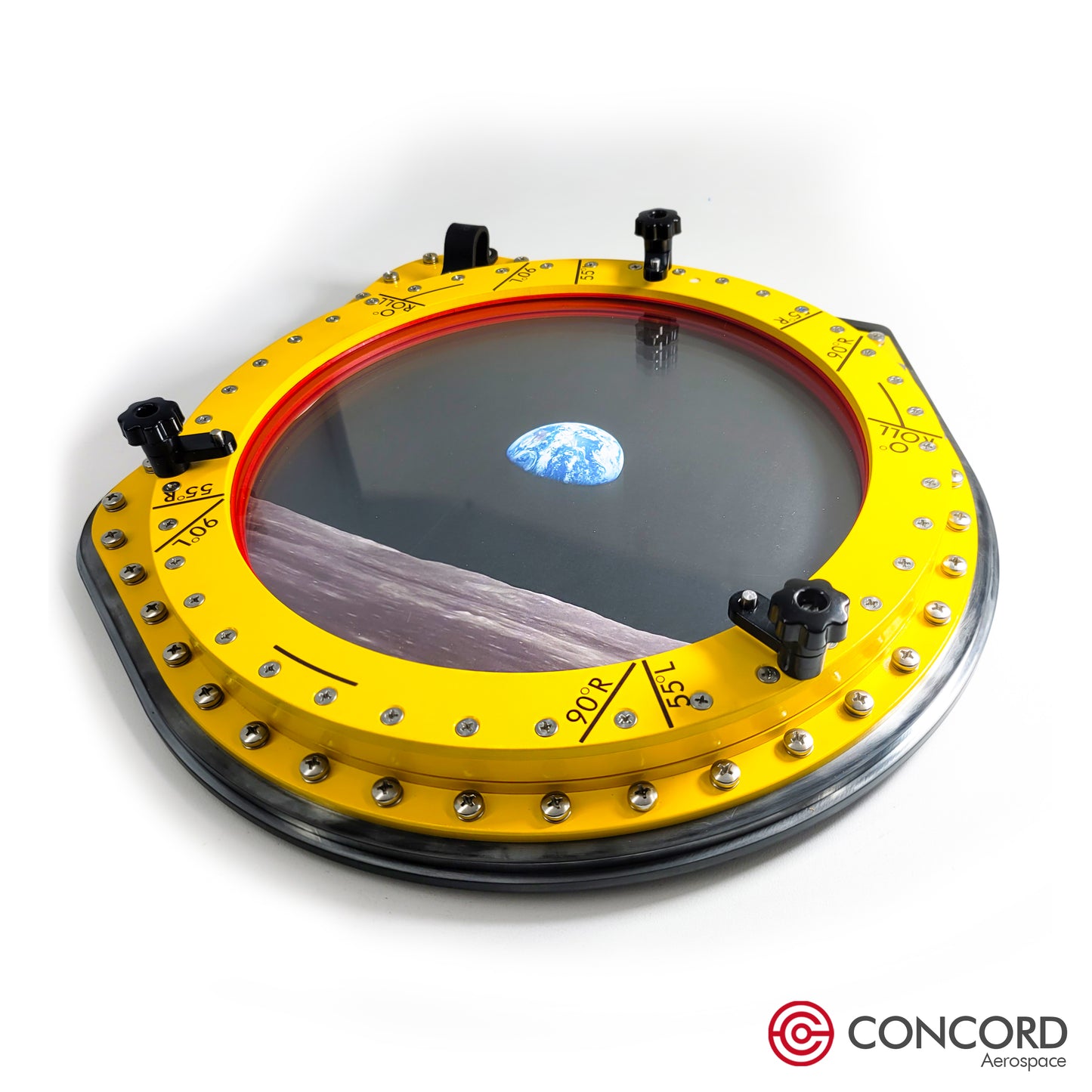

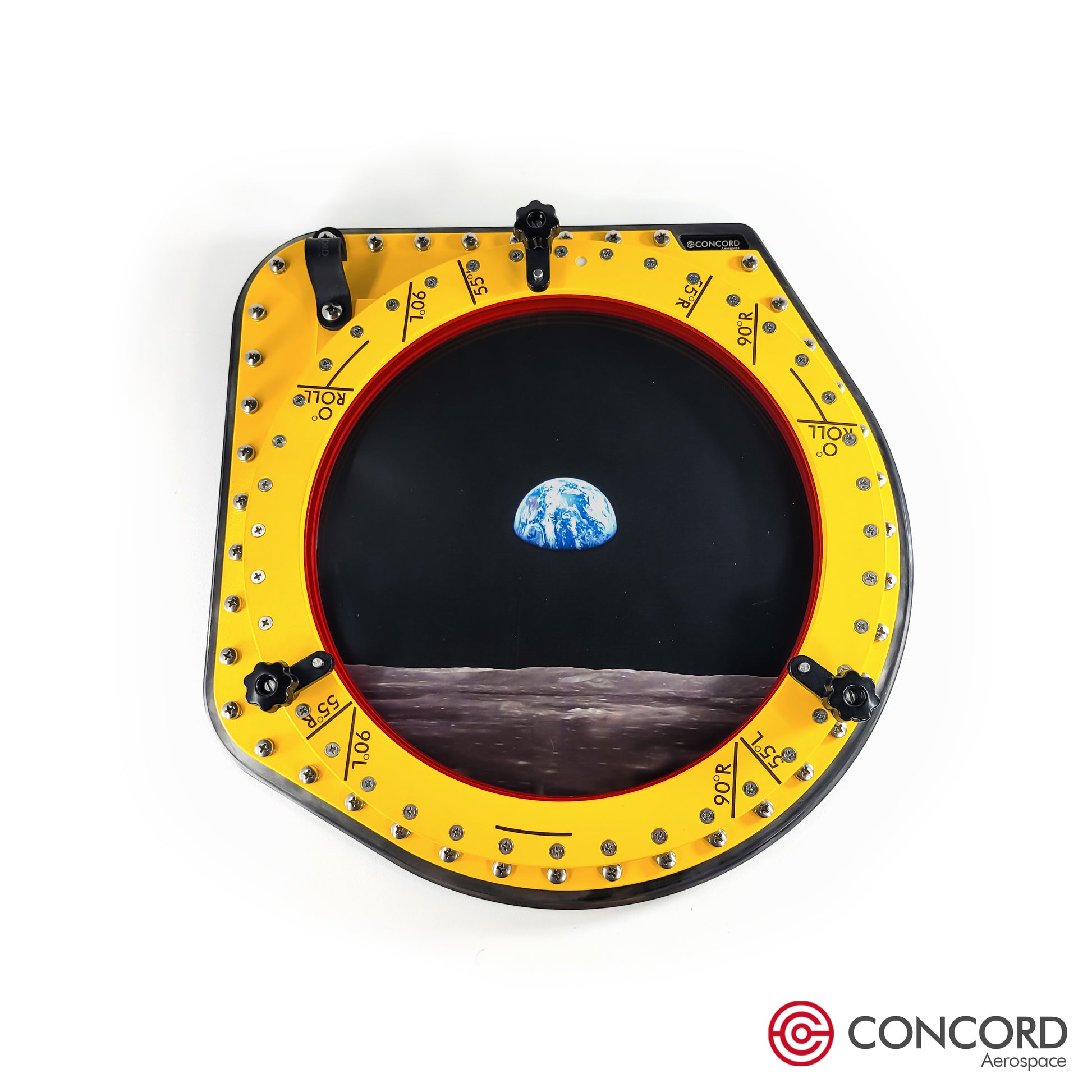

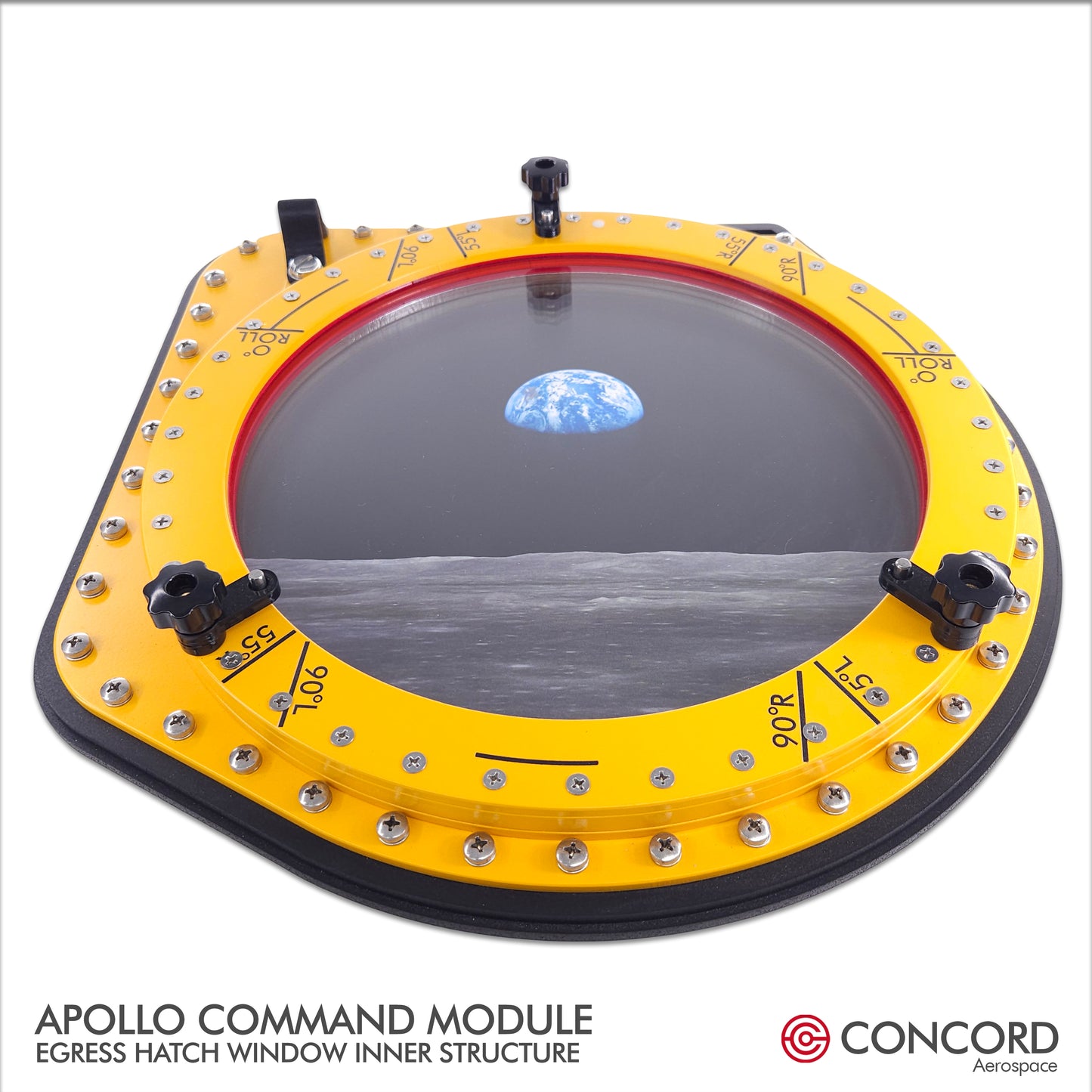

APOLLO COMMAND MODULE HATCH WINDOW

INNER STRUCTURE (PICTURE) FRAME

Concord Aerospace is happy to announce the launch of our limited edition spacecraft window series for the ultimate collectors.  Manufactured with the same methods and materials as the original units, the Apollo Command module hatch window is guaranteed to be a centerpiece for any room or office.


TECHNICAL INFORMATION:

  • 100% accurate to the original unit.
  • Real stainless steel hardware (close to 100 screws, bolts, mounting hardware)
  • NO 3D PRINTED PARTS.
  • Double-pane polycarbonate window layers with custom injected silicone seal. (similar process to the original windows)

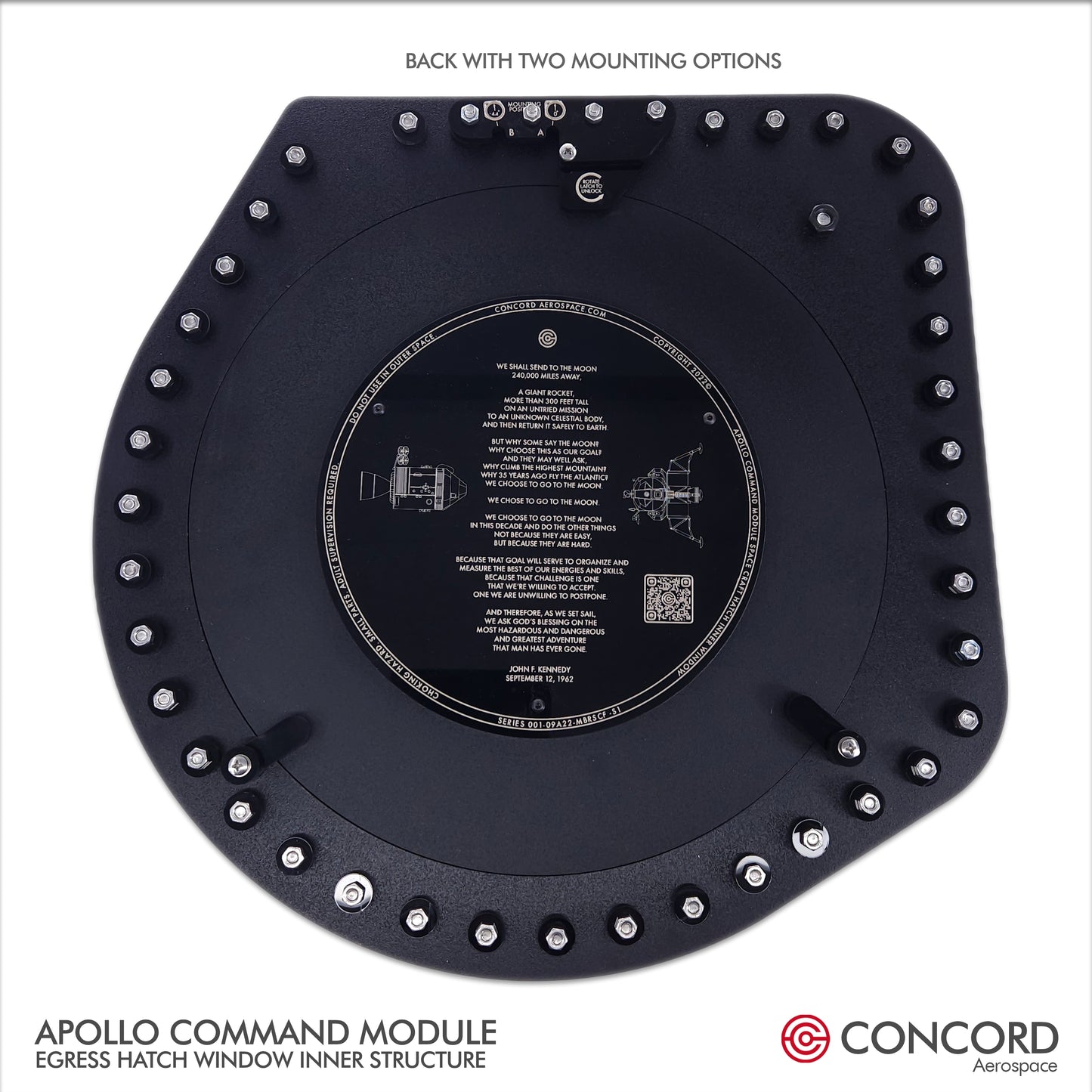

  • Multiple mounting options. Setup for a horizontal and vertical alignment as well as a mount for the off-axis mount option with a 4.5-degree angle like in the actual spacecraft.

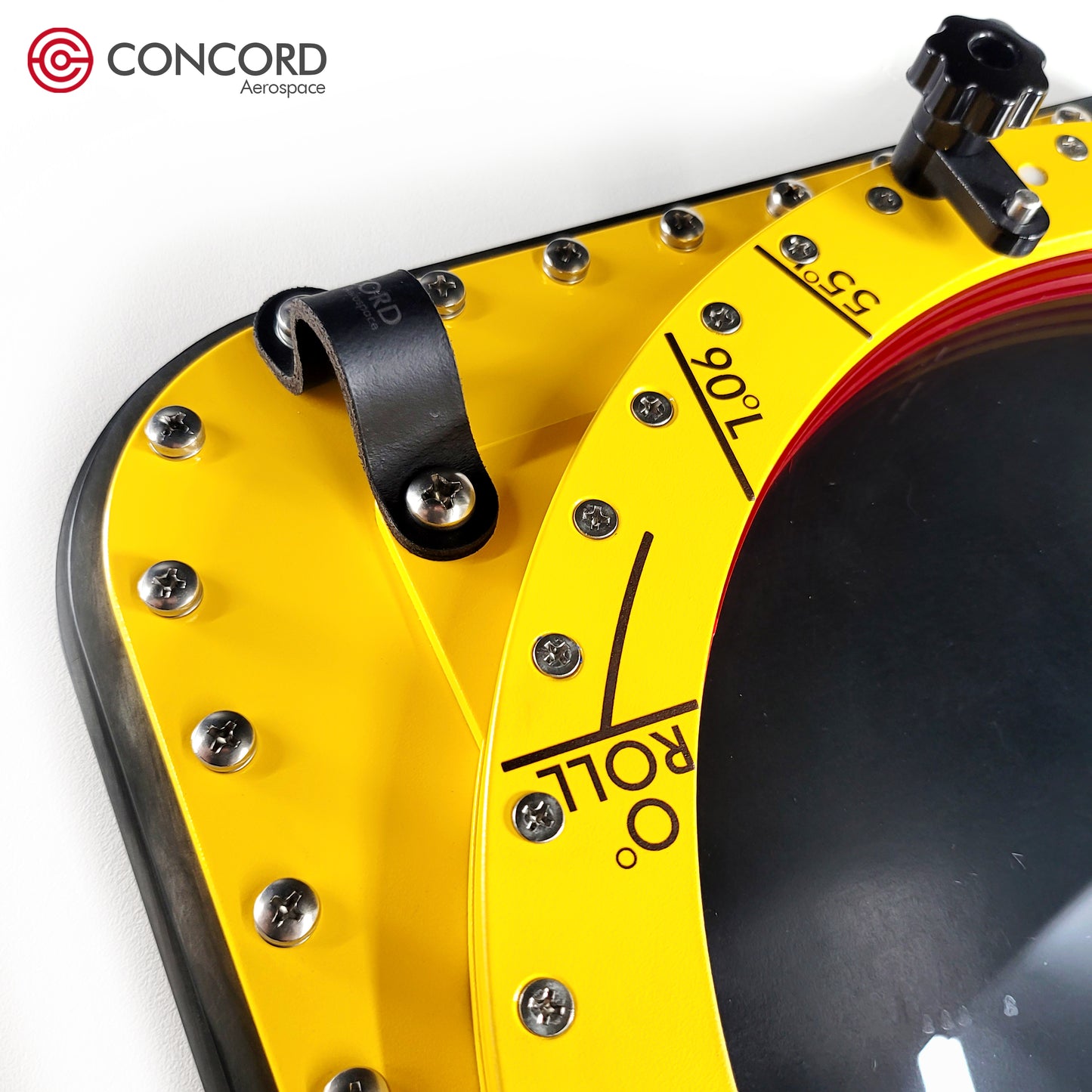

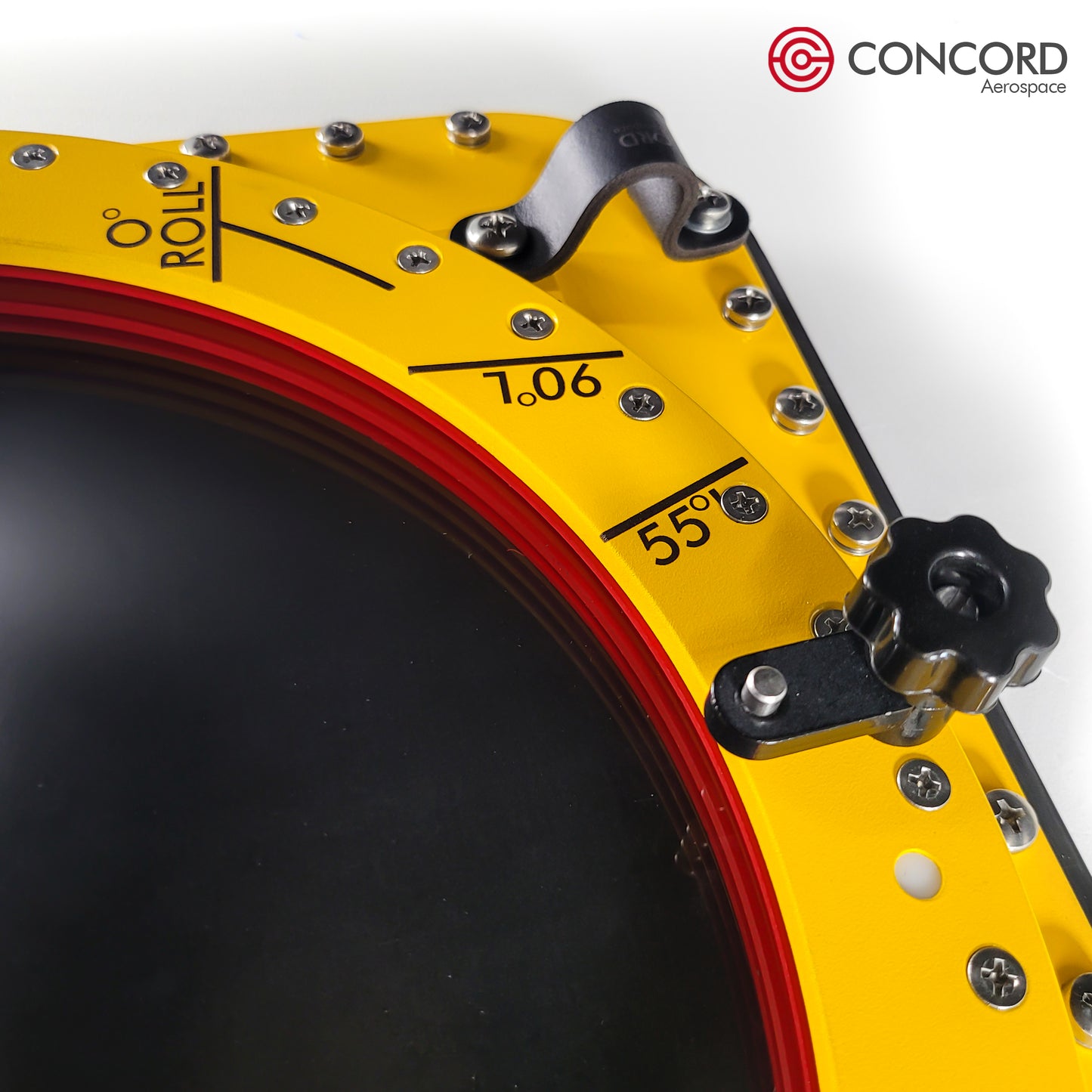

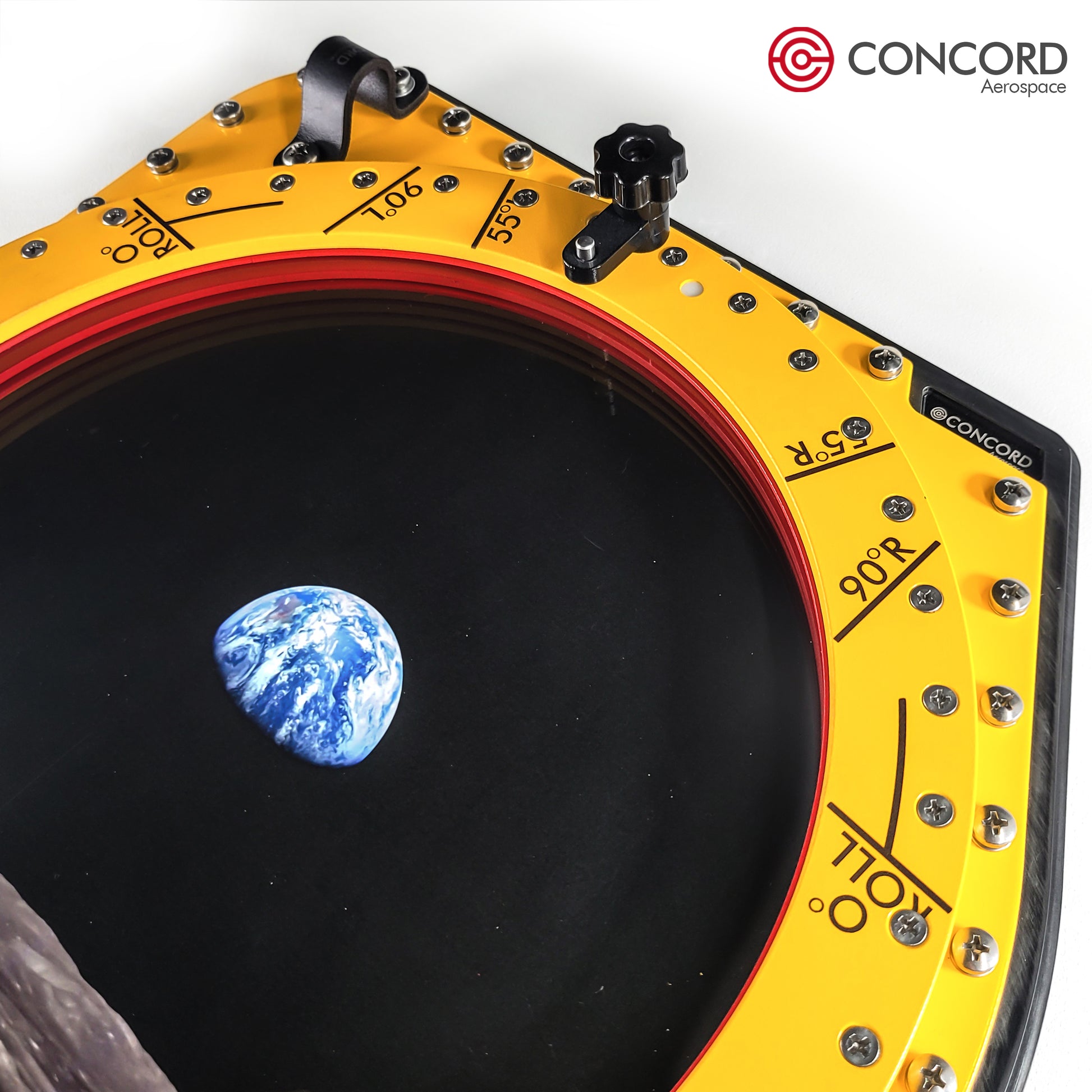

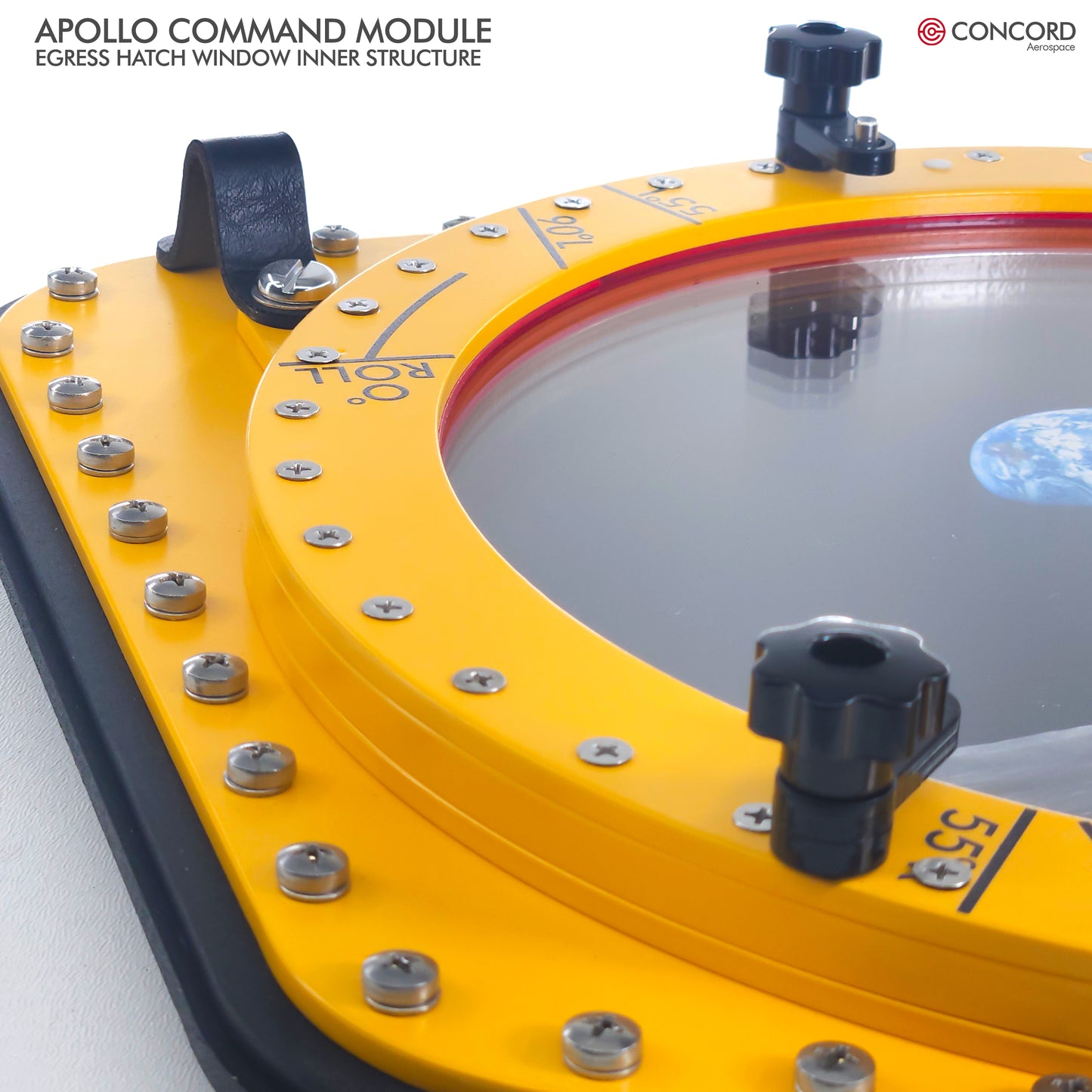

  • Custom UV printed roll indicators and guides on the frame.

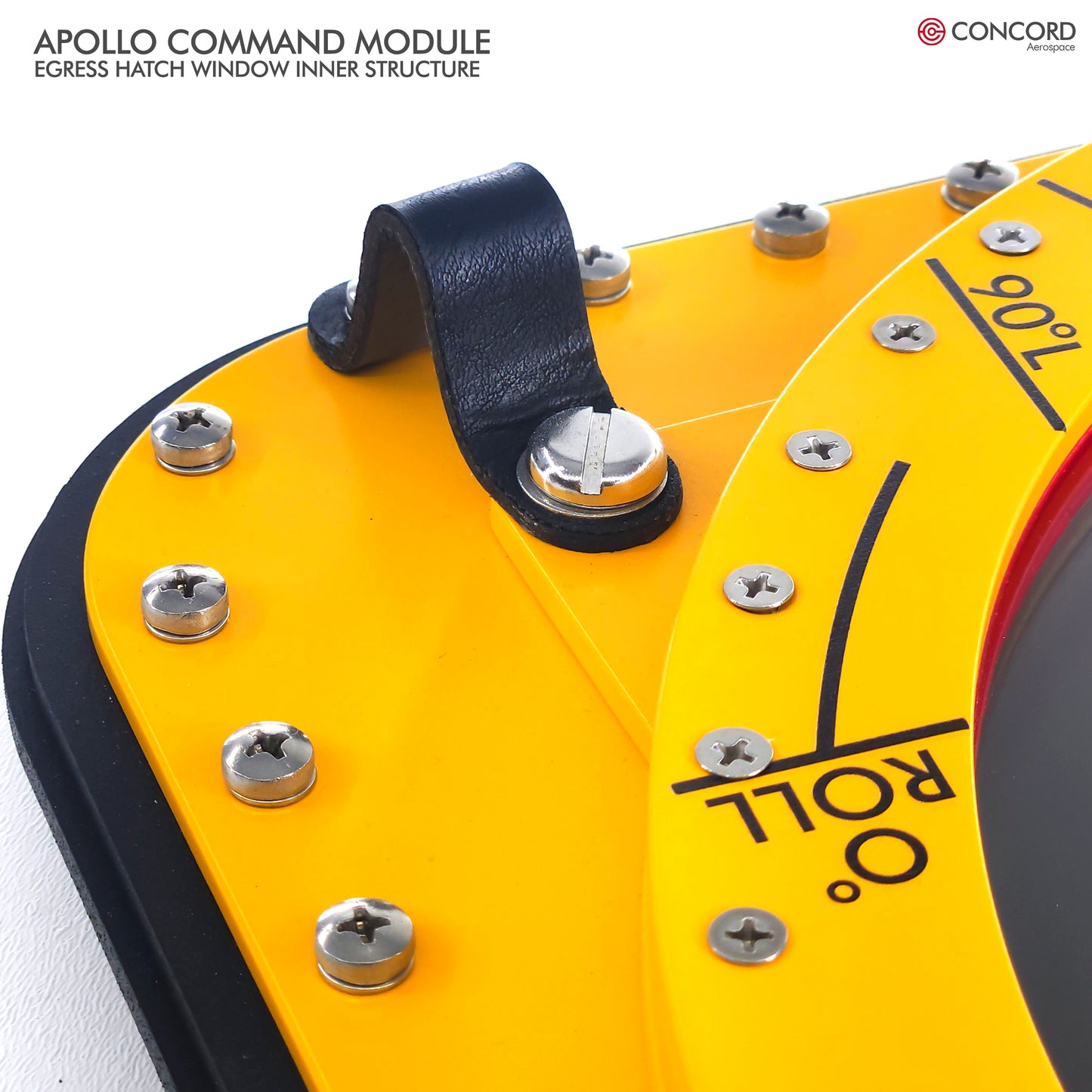

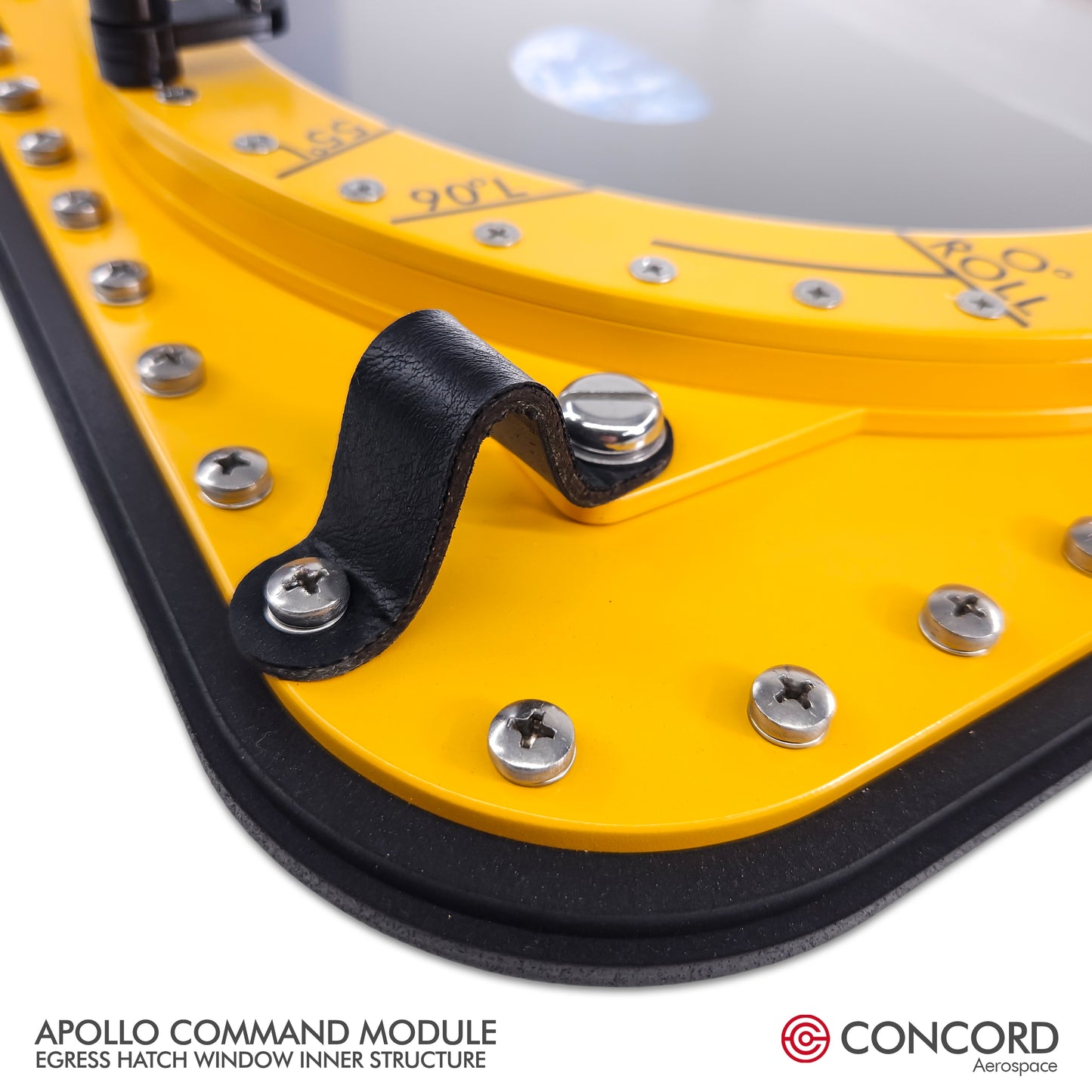

  • Window shade (coming soon) mounts and leather grip.
  • Earth Rise photo comes standard with the unit and the picture/scene can be changed easily.
  • Weight: 8.4 LBS
  • Dimensions: 16" x 16" outer frame.  (40 cm x 40 cm)

MACHINED ALUMINUM VERSION:

  • Ultimate realism
  • Machined and sandblasted metal components
  • Color-matched powder coating application for the ultimate finish and durability.

PRECISION LASER CUT CAST ACRYLIC VERSION:

  • Highest quality cast acrylic core
  • Visually identical to the aluminum version
  • Industrial aerospace 3-coat paint application + satin clearcoat finish

50% SCALE VERSION:

  • Highest quality cast acrylic core
  • 50% size
  • Industrial aerospace 3-coat paint application + satin clearcoat finish
  • Real scaled screws and hardware



REAL APOLLO COMMAND MODULE WINDOW INFORMATION:

The CM has five double-pane windows: one hatch window, two side windows, and
two rendezvous windows. Each of these windows consists of an inner-pressure vessel
and heat-shield windows. The structural design philosophy adopted for the CM inner structure, which is the CM primary pressure vessel, was that all windows would be double-pane windows for redundancy and made of tempered glass. The cavity between the two panes would be evacuated and backfilled to 7.0 psi with dry inert gas. The windows were to be mounted to preclude installation stresses, thus restricting the glass loading to differential pressure.
